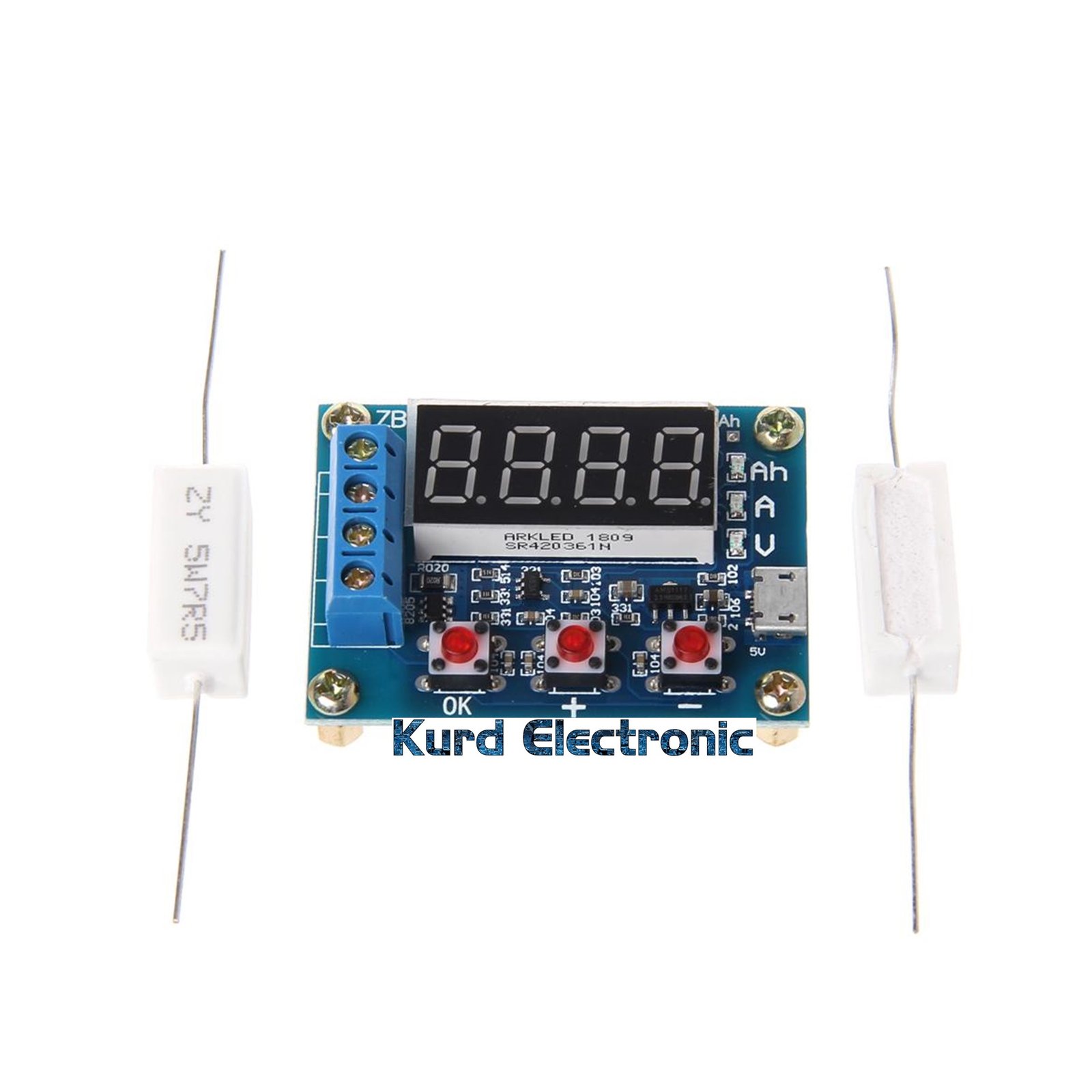

ZB2L3 18650 Li-ion Lithium Battery Capacity Tester

Material: Electrical components
ZB2L3 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650 Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results
Power supply voltage: DC4.5-6V (micro USB interface)
Working current: =70mA
Discharge voltage: 1.00V-15.00V, resolution 0.01V
Termination voltage range: 0.5-11.0V
Support current through: maximum 3.000A, resolution 0.001A
Maximum voltage measurement error: 1% + 0.02V
Maximum current measurement error: 1.2%+-0.002A
Maximum battery capacity range: 9999Ah (1Ah=1000mAh)
Board size: 50mmX37mm
