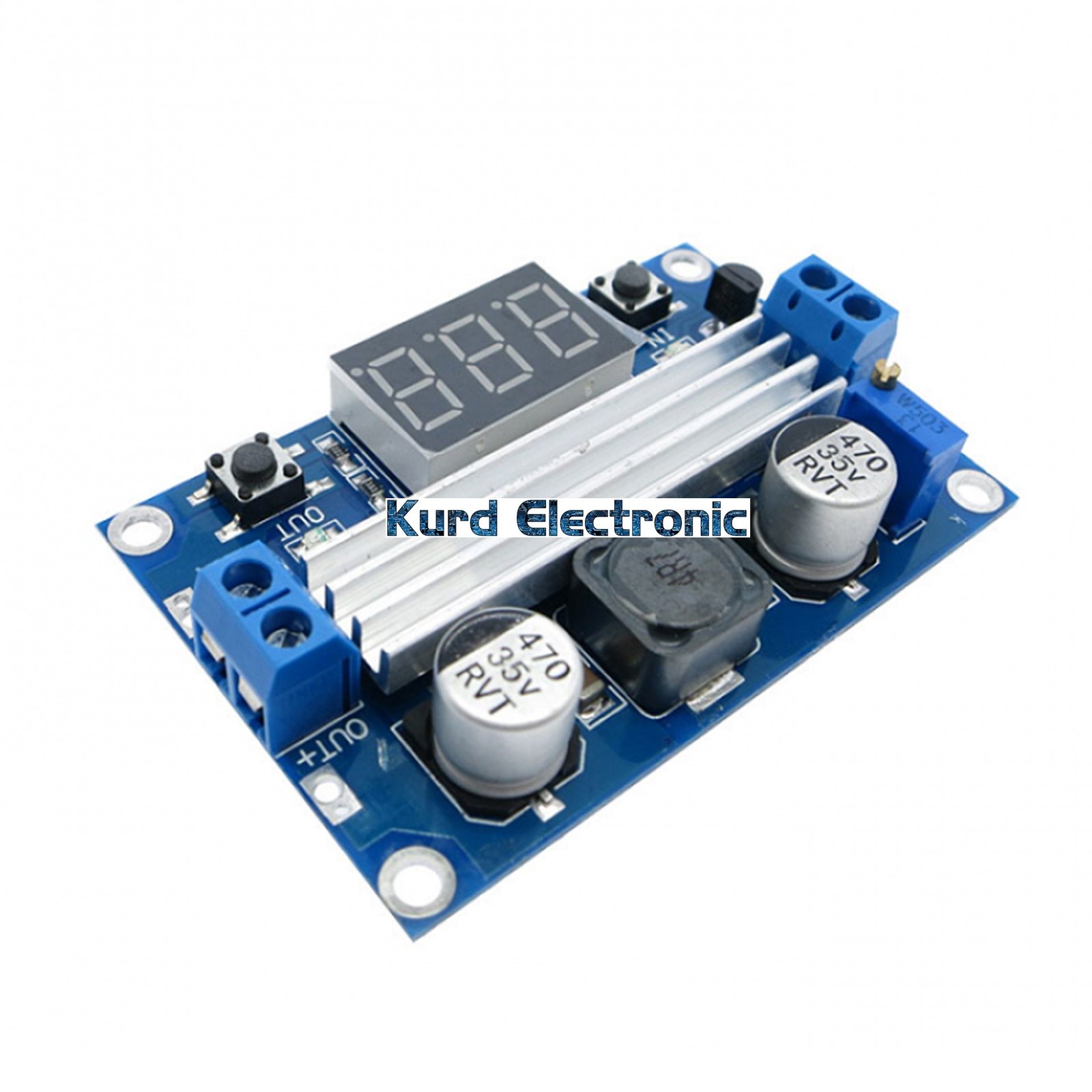

up Module 3.0~35V to 3.5~35V 100W

Input Voltage:3-35V DC (Note: When input voltage is less than 4V, onboard voltmeter will not work).
Input Current:9A (max).
Output Voltage:3.5-35V DC (this board is boosting board, output voltage>=Input voltage).
Output Current:6A (max).
Output Power: 65W (when the input and output voltage greater than 20V up to 100W).
Conversion Efficiency: 96% (the highest).
Output Ripple:40mV(TYP).
Onboard Voltmeter Range:4-40V ,Error:+/-0.1V.
Size:67.5mmx41.5mmx14mm/2.66″x1.63″x0.55″(inch) (approx).
Short circuit protection: yes(limit current 14A). (Note: connected to high-power load, just switched on the impact of current very general meeting current limiting self-locking protection, it is recommended to be switched on firstly, and then access the load).
The module has high power output and efficiency (up to 96%). The output can be up to 65W (and can further reach 100W when enhance heat-transfer).
Note 1: No reverse connection protection; please pay attention to see the positive and negative input terminal.
Note 2:The power module usage requires basic electronic circuit, improper use can damage
