Product Features:
Small size, easy to use
Low voltage, low power consumption
High accuracy
Strong anti-jamming
Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions
Applications:
Horizontal distance;
Obstacle avoidance, automatic control;
The object approaches, there is a perceived
Traffic control;
Security, industrial control;
Artificial intelligence, and research
Electrical Properties:

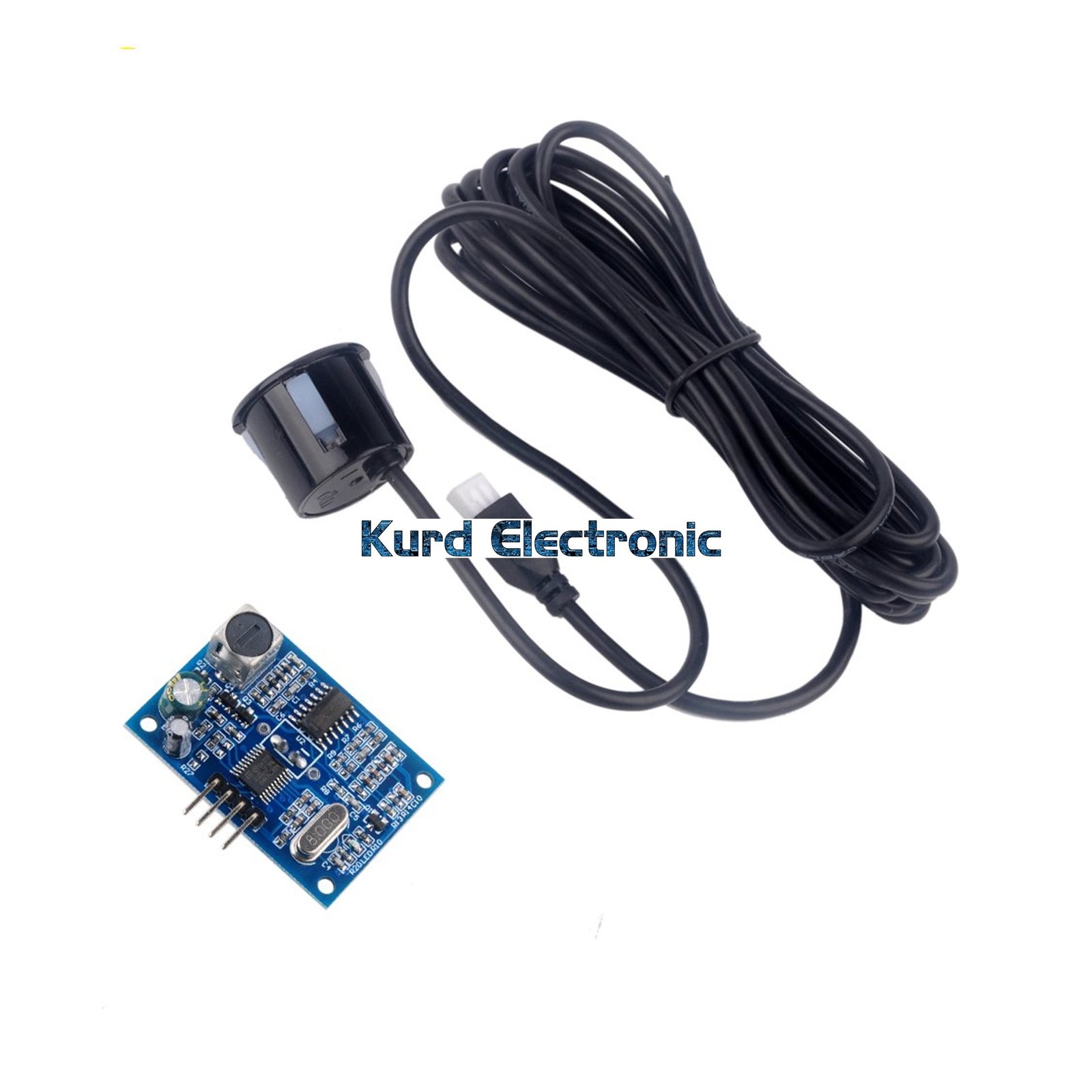

Electrical parameters: JSN-SR04T
Operating voltage: DC 5V
Quiescent current: 5mA
Total current work: 30mA
Acoustic emission frequency: 40 kHz
Farthest distance: 4.5m
Blind: 25cm
Resolution: about 0.5cm
Angle: less than 50 degrees
Working temperature: -10 ~ 70 Celsuis
Storage temperature: -20 ~ 80 Celsuis
Wiring:
+ 5V (positive power supply)
Trig (control side) RX
Echo (the receiver) TX
GND (negative)
The Basic Working
