TS832 $ RC832 For FPV

Brand Name: Eachine
Item Name: TS832 transmitter
Frequency: 5.8G
Power input: 7.4-16V (3S Lipo suggested)
Transmitting Power: 600mA
Video Format: NTSC / PAL Auto
Audio Bandwidth : 6.5M
Video Bandwidth: 8M
Antenna Gain: 2db
Weight: about 22g
Working Current: 220mA at 12V
Dimension: 54x 32x 10mm(excluding antenna)
Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug

RC832:
Brand Name: Eachine
Item Name: RC832 receiver
Antenna Impedance: 50?
Antenna Gain: 2db
Video Impedance: 75?
Video Format: NTSC/PAL auto
Power Input: 12V
Working Current: 200mA max
Dimension: 80x 65 x15mm
Weight: about 85g
Connector: receiver module side RP-SMA jack, antenna RP-SMA plug

Features:
32 channels choice to get the best transmitting quality.
Super small 200mA current for 600mW wireless transmitter power.
Compatible with A,B,E and F frequency bands
Smaller size with lighter weight.
32 CH compatible to all FPV 5.8g receivers.
5.8G 600mW 32 Channels AV wireless FPV transmitter
600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.

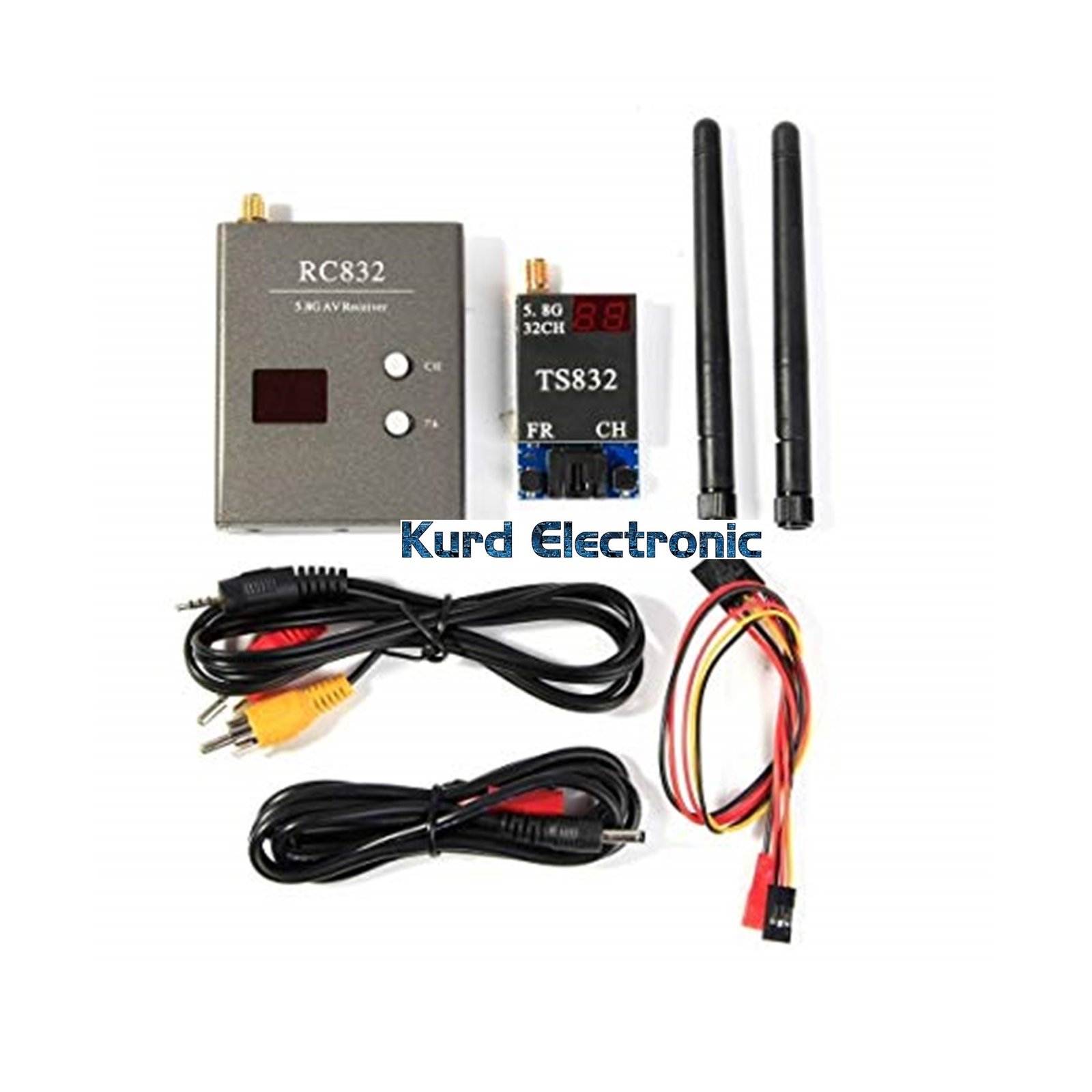

Package Included:
1 x TS382 transmitter
1 x RC832 receiver
2 x 5.8G 5DB antenna
3 x cable
