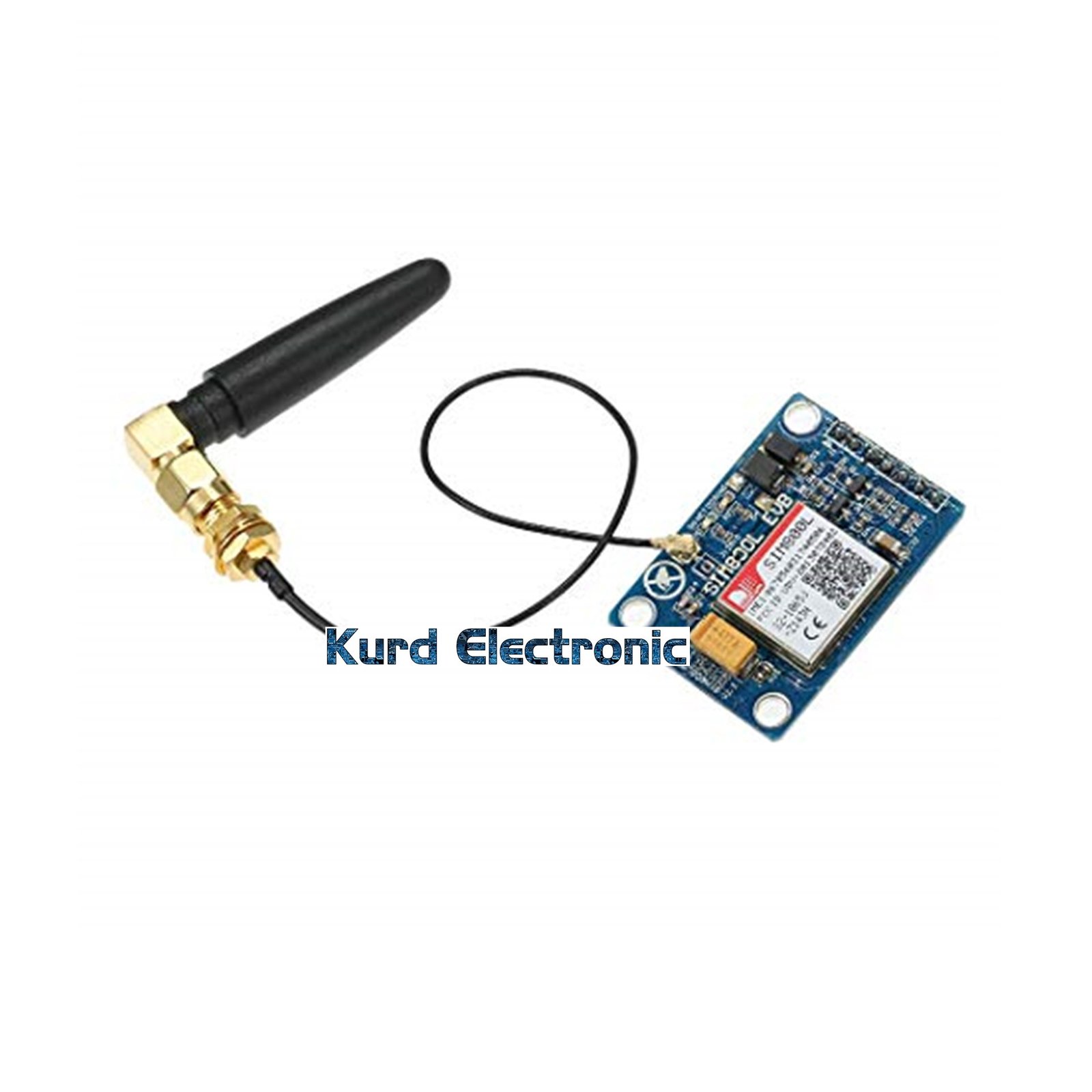

SIM800L V2.0 5V Wireless GSM GPRS MODULE

This SIM800l module has a set of TTL level serial interface, a set of power supply interface. Besides, there are a set of antenna interface on this module.
The chip of SIM800L basic features
SIM800H is a complete Quad-band GSM/GPRS solution in a LGA type which can be embedded in the customer
Applications:
SIM800H support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power
Consumption:
With tiny size of 15.8*17.8*2.4 mm, it can fit into slim and compact demands of customer design. Featuring
Bluetooth, FM and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
•Bluetooth: Compliant with 3.0+EDR
•FM: 76~109MHz worldwide bandning step
•Dimensions: 15.8*17.8*2.4mm
•Weight: 1.35g
•Control via AT commands (3GPP TS 27.007, 27.005 And SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: Max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
•Non transparent mode
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•E-MAIL
•DTMF
•Jamming Detection
•Audio Record
•TTS
•Embedded AT (optional)
Specifications for voice
•Triode
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR •Hands-free operation
（Echo suppression）
Interfaces
88 LGA pads including:
•Analog audio interface
•RTC backup
•Serial interface
•Interface to external SIM 3V/1.8V
•GSM Antenna pad
•FM Antenna pad
•Bluetooth Antenna pad
Compatibility
•AT cellular command interface Certifications (Plan):
•CE
•GCF
•FCC<
