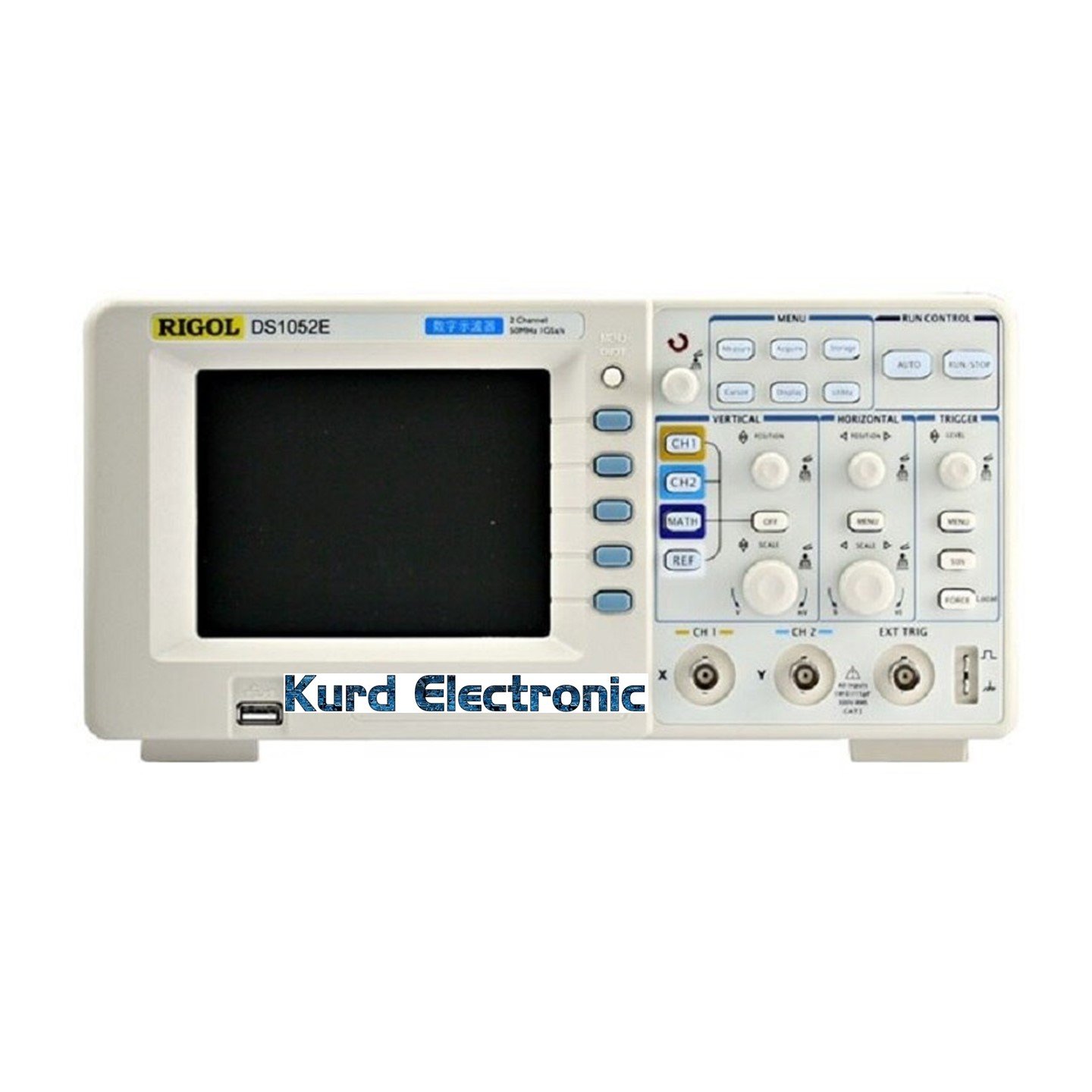

Rigol DS1052E oscilloscope

General Data

DSO Rigol DS1052E

Display

5.7″ TFT LCD with 65536 colors

Resolution

320 ? 234 Pixel

Size

303 mm ? 154 mm ? 133 mm

Weight

2.5 kg

Oscilloscope Details

DSO Rigol DS1052E

Channels

2

Real-time sample rate

1 GSa/s real time

Bandwidth

50 MHz

Sampling mode

Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect

Mathematics

A+B, A-B, A?B, FFT (Fast Fourier Transform)

FFT windows

Rectangle, Hanning, Hamming, Blackman

Signal

DSO Rigol DS1052E

Max. Input voltage

300 Vrms CAT I

Real-time sample rate

13 Sa/s to 1 GSa/s real time

Time base

5 ns/Div. to 50 s/Div. (Steps 1 – 2 – 5)

Memory

1M Messpunkte (1 channel) 512K Messpunkte (2 channels)

Vertical

DSO Rigol DS1052E

Analog digital converter (A/D)

With the resolution of 8 bits, make sampling on both channels synchronously.

Sensitivity range (V/div)

2 mV/Div to 10 V/Div.

Displacement range

?10 Div. (2 mV – 10 V)

Trigger

DSO Rigol DS1052E

Trigger

Channel 1, Channel 2, Ext, Ext / 5, AC Line

Signal system and line/field frequency (Video triggering mode)

Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.

Measurement

DSO Rigol DS1052E

Cursor measurement

Manual, Track and Auto Measure modes

Auto measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1-2 (rise), Delay1-2(fall)
