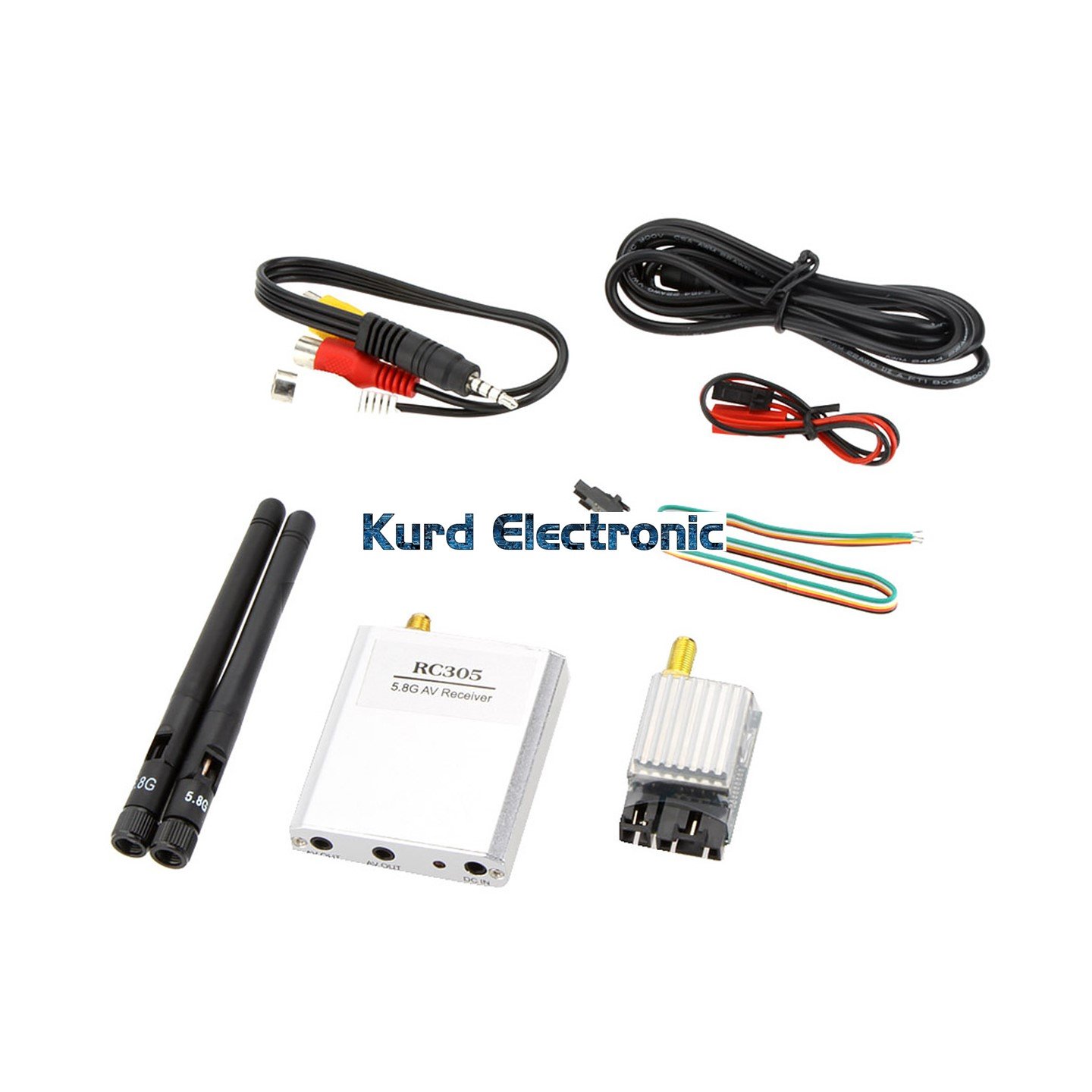

rc305 receiver ts 58200 transmitter 200 mw 8 channel
$40.00
Out of stock
RC305 Receiver Specifications:
Includes an additional AV output for video recording while using FPV goggles
Features:
Channels: 8
Receiver operating voltage: 5VDC
Operating temp: -10-85C
Video bandwidth: 0-8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8-1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5-2.0Vp-p
Audio input impedance: 10K/Ohm
Weight: 43g
Antenna connector: RP-SMA
Dimensions: 61x52x13mmChannels
5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ
5.8Ghz 200mW transmitter(TS351) Specifications:
5.8Ghz 200mW transmitter(TS351). This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 2km+. This unit a Includes built-in microphone. The receiver unit has additional AV outputs for video recording while using FPV goggles.
Features:
Output impedance: 50Ohm
Output power: 2123dBm
Channels: 8
Transmitter operating voltage: 7-15VDC / 150mA
Receiver operating voltage: 5VDC
Operating temp: -10-85C
Video bandwidth: 0-8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8-1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5-2.0Vp-p
Audio input impedance: 10K/Ohm
Weight: 25g
Antenna connector: RP-SMA
Dimensions: 55x26x17mm
Channels
5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ
