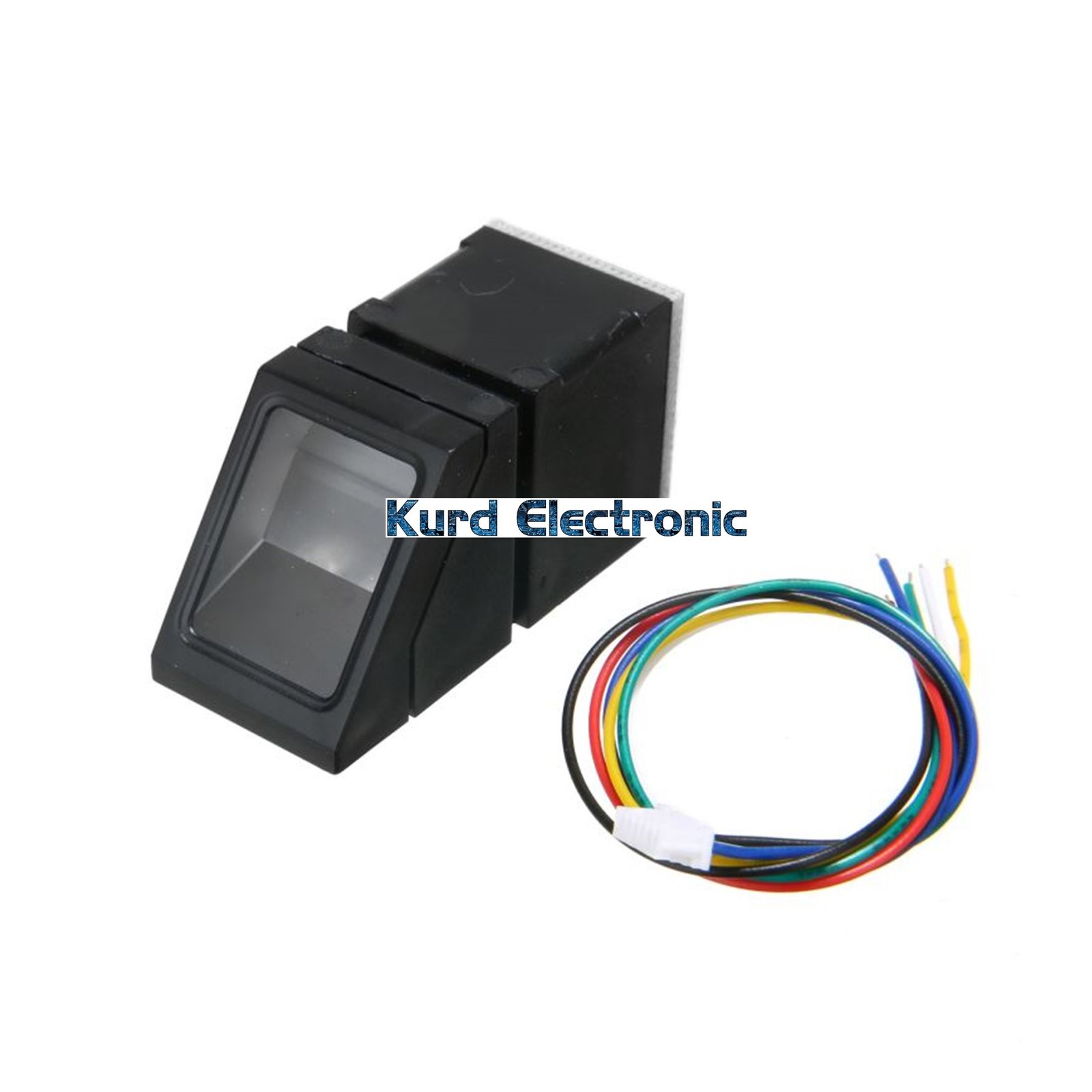

R307S Fingerprint Identification Module Sensor with Cable 15cm

$12.20

Availability: 10 in stock

SKU: KES0000234 Category:

Type: Optical
Backlight: Blue
Interface: USB2.0/UART(TTL logical level)
RS232 Communication Baud Rate: 9600BPS~115200BPS changeable
Verification Speed: 0.1 sec
Scanning Speed: 0.2 sec
Character File Size: 256 bytes
Template Size:512 bytes
Storage Capacity: 1000
Security Level: 5 (1,2,3,4,5(highest)
FRR (False Rejection Ratio): ?1%
FAR (False Acceptance Ratio): ?0.0001%
Resolution: 500 DPI
Voltage: DC 4.2-6V
Working Current: 50mA (Typical)
Peak Current: 75mA
Matching Method: 1 : N
Operating Temperature: -20-50 ?
Image Capture Surface: 1.5?1.1mm
Overall Size: 4.5×2.4x2cm/1.77×0.94×0.79″
Quantity: 1 Set

Package Contents:
1 x Fingerprint Sensor Module
1 x Connecting Cable
