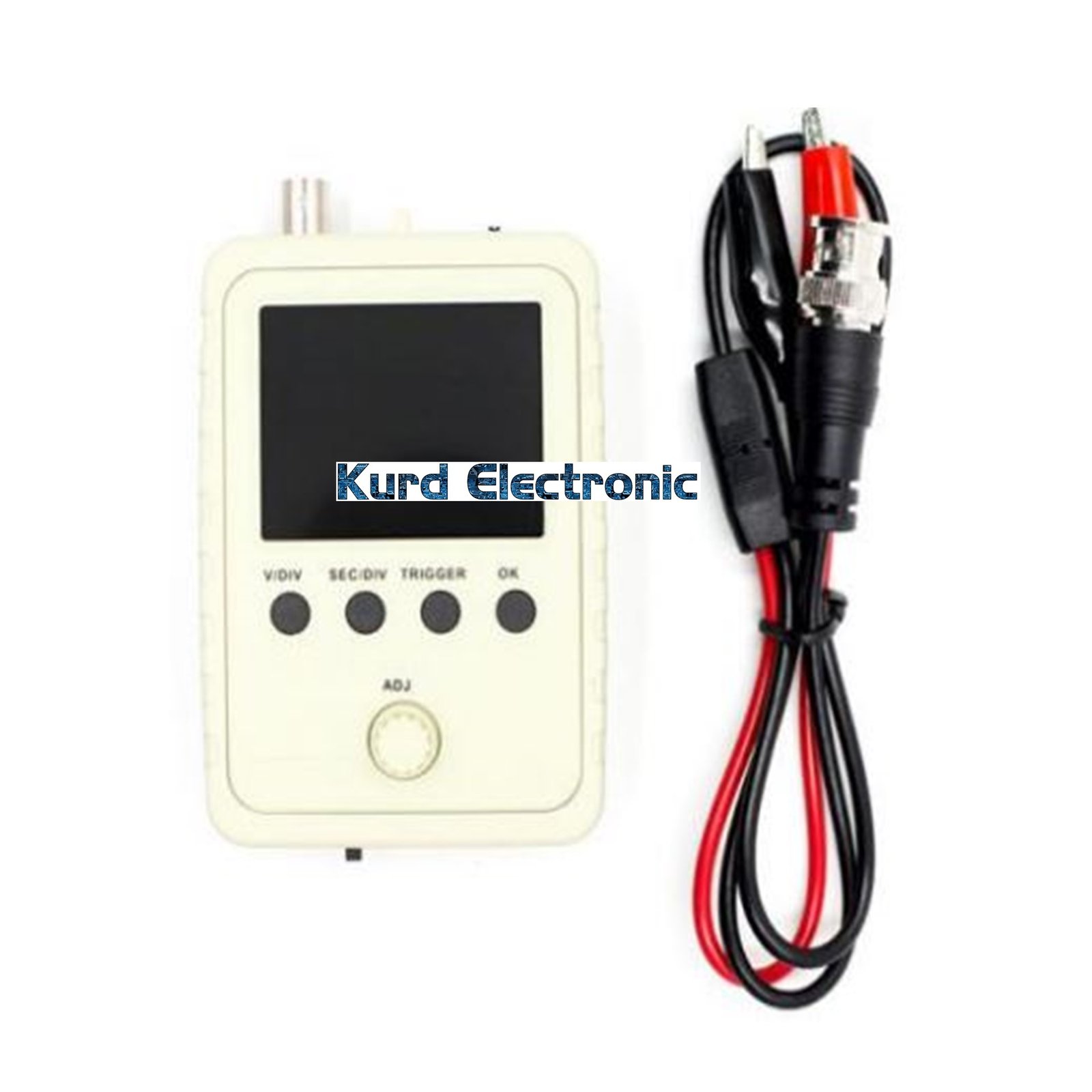

Oscilloscope Suite DSO138 Upgraded Version?DSO150?

Highest real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog band width: 0 – 200KHz
Vertical Sensitivity: 5mV / Div – 20V / Div (Progress by 1-2-5)
The vertical displacement is adjustable with an indication
Input impedance: 1M&;
Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
The coupling method includes / AC / GND
Horizontal time base range: 10?s / Div – 50s / Div (progressive by 1-2-5)
With automatic, conventional and single trigger mode, easy to capture instantaneous waveform
Can be triggered by rising or falling
The trigger level is adjustable with an indication
Can be observed before the trigger waveform (negative delay)
Can be frozen at any time waveform display (HOLD function)
Comes with 1KHz /3.3V square wave test signal source
With the waveform parameters of digital display, can display the parameters are:frequency, Cycle, pulse width, duty cycle, maximum, minimumValue, average value value, rms value
Save / tune out the waveform, turn off the waveform does not disappear
