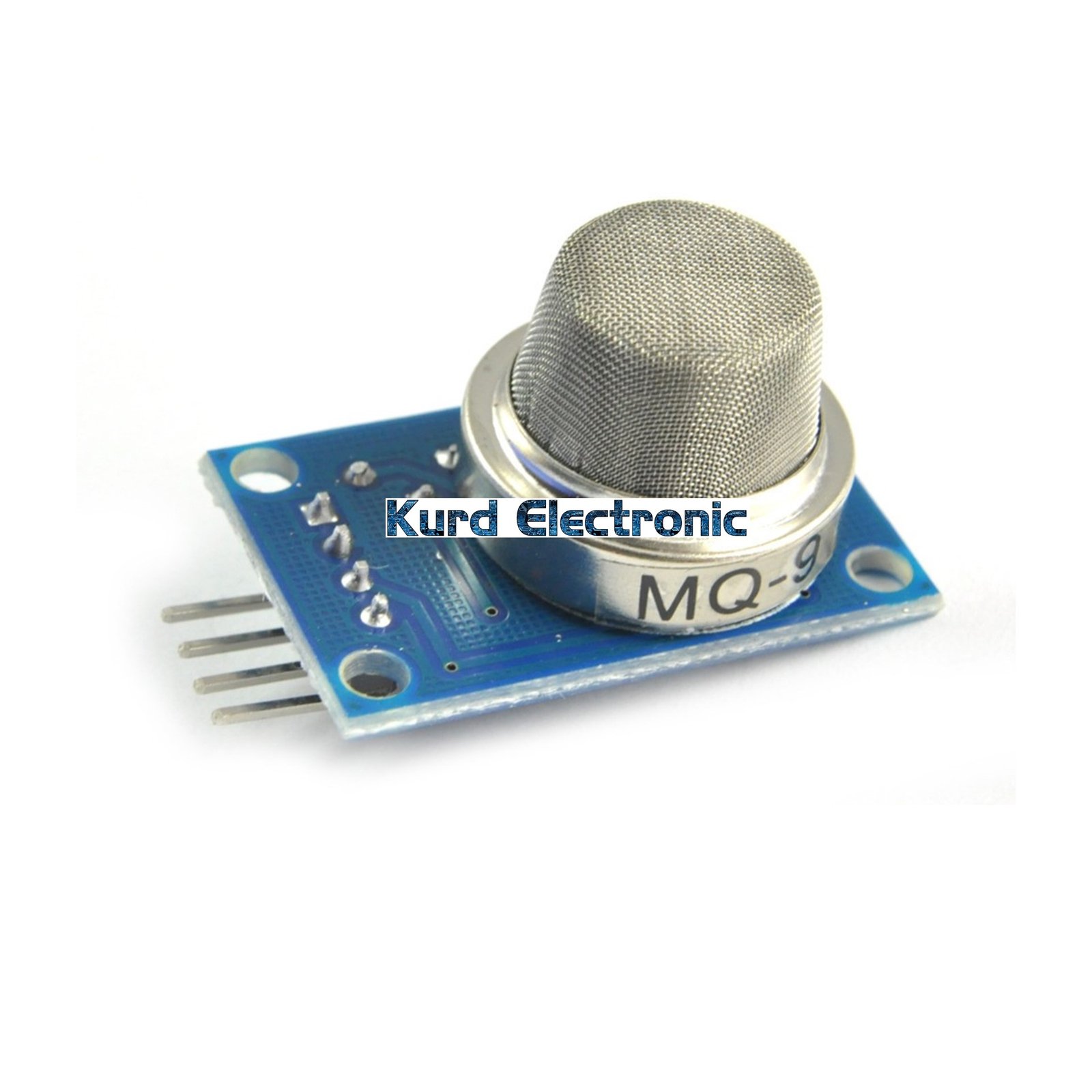

MQ-9 CO Carbon Monoxide methane liquefied Gas Sensor

For home or factory gas leakage monitoring devices, suitable for carbon monoxide and other combustible gases and monitoring devices
– High-quality, dual-panel design, with power indicator and TTL signal output instructions;
– DO switching signal(TTL) output and AO analog signal output
– TTL output valid signal is low. (When the output low signal light is on, it can be directly connected microcontroller or relay module)
– Analog output voltage: the higher the concentration, the higher the voltage
– Have better sensitivity to carbon monoxide detector
– Four screw holes, easy positioning
– Product Dimensions: 32 (L) * 20 (W) * 22 (H)
– Long life and stability
– Quick response and resume

– Electrical performance:
– Input voltage: DC5V
– Power (current): 150mA
– DO output: TTL digital 0 and 1 (0.1 and 5V)
– AO Output: 0.1-0.3V (relatively clean), the highest concentration voltage is about 4V
– Special note: When the sensor is powered, it needs to be warmed up about 20S, so the measured data becomes stable, the heat sensor is a normal phenomenon, because its inside is with an electric wire, if not, unmoral.

Specifications

– Product Model?MQ-9
– Product Type: semi conduct gas sensitive element
– Gas Detected carbon monoxide Combustible gas
– Detectable Concentration?10-1000ppmCO, 100-10000PPM gas

Package Included:
1 x MQ – 9 Carbon Monoxide CO Alarm Combustible Gas Sensor Module S
