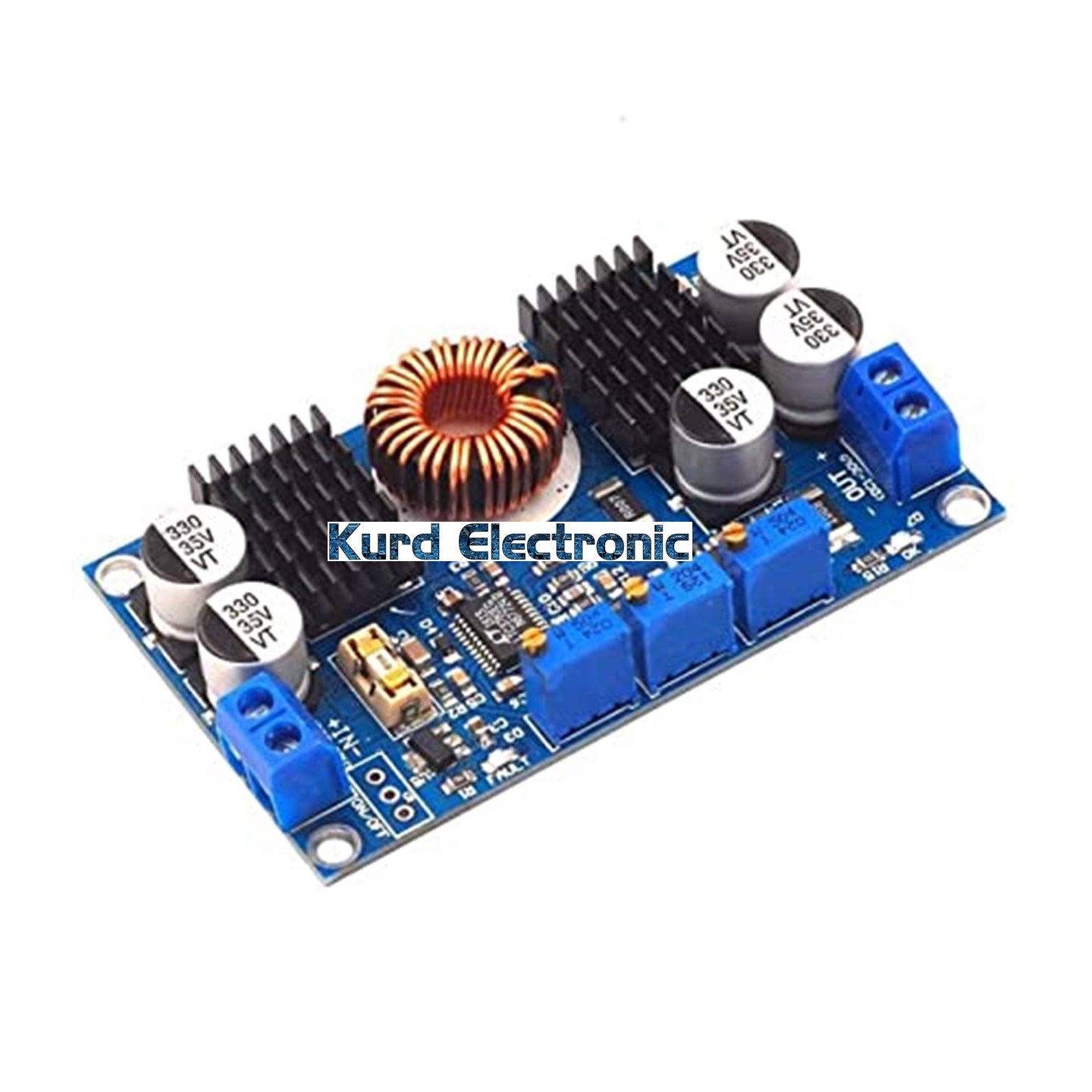

LTC3780 DC- DC 5V-32V to 1V-30V 10A Constant Voltage Current Automatic Step- down Regulator Charging Module

Specification:
Input voltage: DC5-32V;
Output voltage: DC1V-30V continuously adjustable; the default 12V shipment
Output current: 10A (MAX) , long term within 8A
Output power: 80W, peak 130W, more than 80W please strengthen heat dissipation
Output ripple: 50mV (12V turn to 12V, 5A measured)
Short circuit protection: YES
Input reverse connection protection: No
Output prevent reverse connection protection: No
Operating temperature range: -45?~ +85?
Size: 77.6*46.5*15mm (including the bottom surface of the radiating aluminum)
Package included:
1 x Automatic Step Up Down Regulator Charging Module
