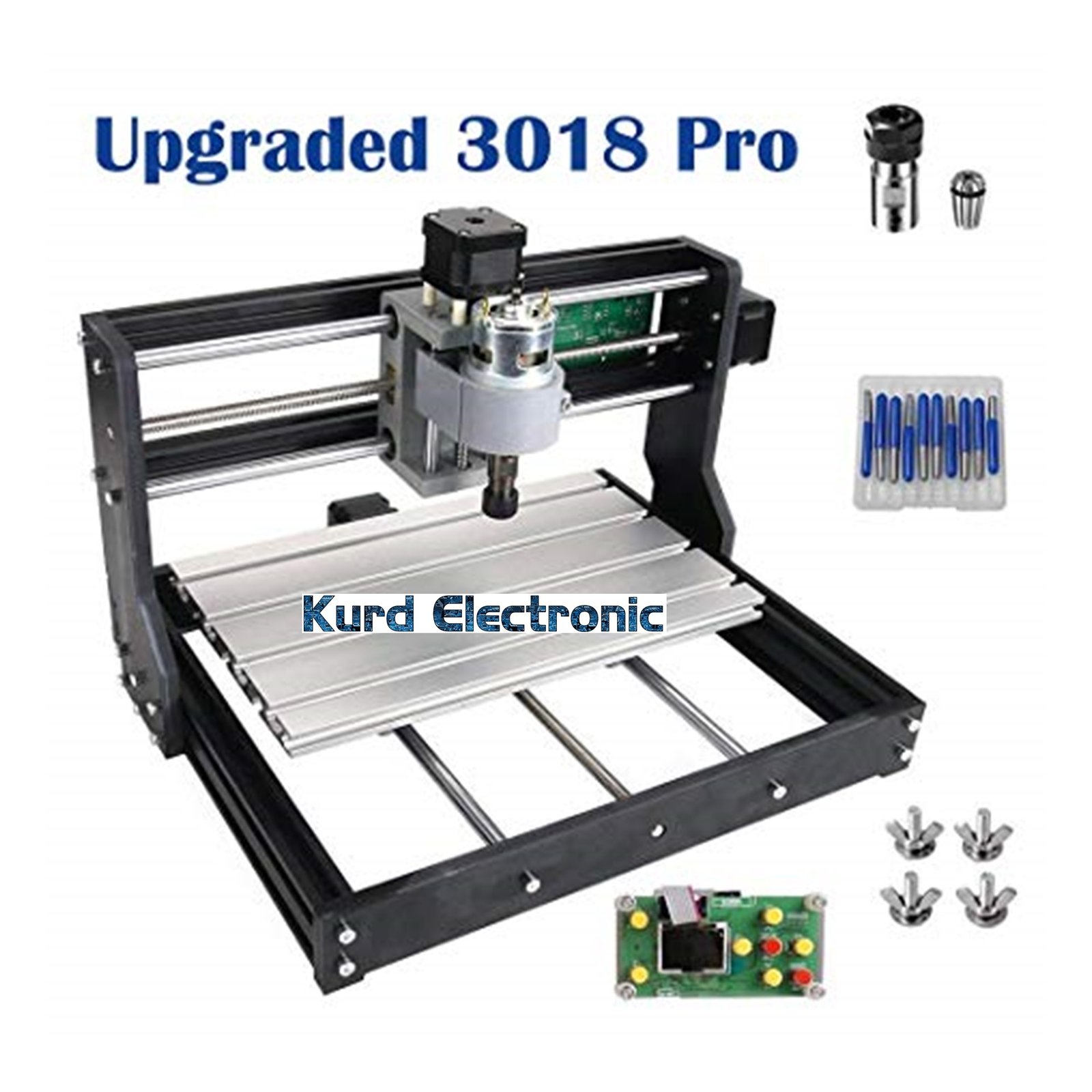

CNC 3018 Pro + offline controller

Model: CNC 3018 Pro
Control software: GRBL control
Material: Aluminum + plastic
Working area: 300*180*40mm
Frame size: 400*330*240mm
775 spindle motor: 24V 10000rpm
Step motor: 1.3A 0.25N.m
Power: 24V 5A
Support system: Windows XP / Win 7 / Win 8 / Win10

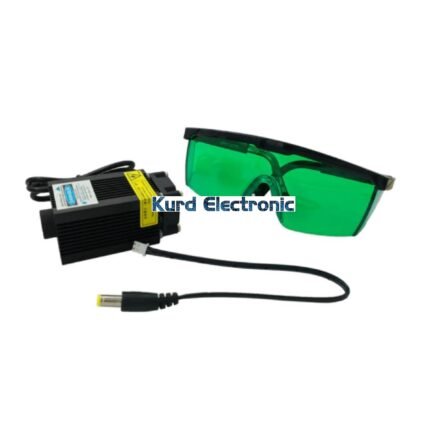

Laser: 500mw / 2500mw / 3500mw / 5500mw / 15000mw

Application:
Can be carved: wood, plastic, paper, bamboo, horns, leather (such as wallets and bags), rubber stamps, photosensitive stamps, printing paper, sponge paper, etc.
Not engravable: metal, jewelry, jade, transparent glass, ivory, colorless transparent materials, etc.
Can cut: leather, printing paper, non-woven fabric, light wood board, etc.
Friendly tip: 15000mw laser kit can be carved on stone, stainless steel surface and anodized colored aluminum alloy surface.

Feature:
1. New upgrade of body material! Fully upgraded, controllable motherboard, three-axis driver, dual Y-axis, comprehensive functions.
3. Avoid stepper motor overcurrent protection damage, upgrade integrated stepper motor driver, 2A high current, high stability.
4. GRBL1.1f firmware, stable performance.
5. Support offline laser output 2P / 3P laser, support PWM / TTL signal control.
6. Power 0-100% adjustable! The spindle supports PWM power adjustable between 0-100%.
7. Laser direct image engraving, (supports offline) can work without connecting to a computer. No programming, no design, simple and convenient.
