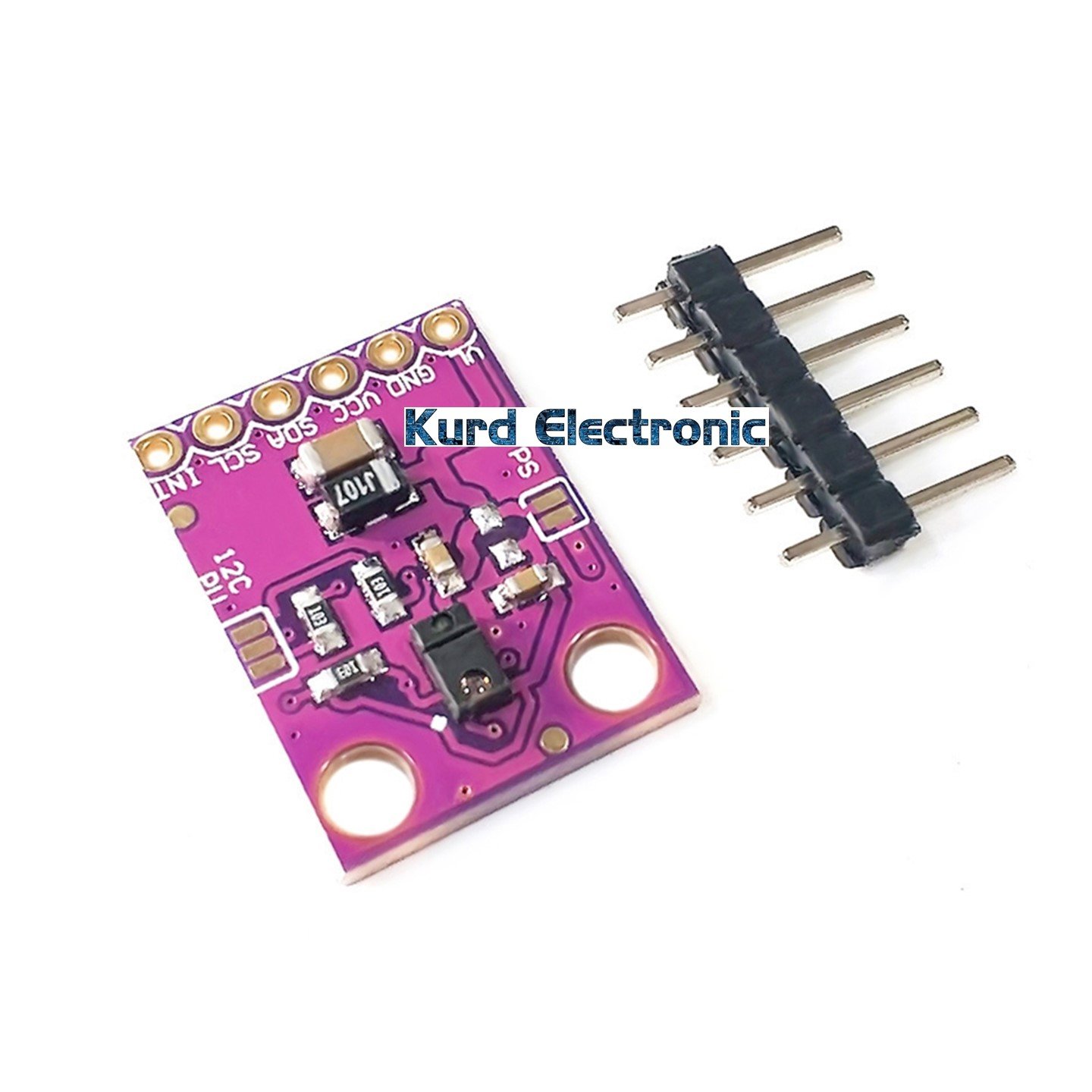

CJMCU-9930 Close and Non-Contact Gesture Detection and Attitude Sensors APDS-9930

integrated ALS, infrared LED and proximity detectors for optical modules
ambient brightness sensing (Ambient, Light Sensing ALS) is similar to the human eye’s visual response
with the upper and lower limits of the threshold of the programmable interrupt function
up to 16-bit resolution
after the operation of the high sensitivity of the dark glass
0.01lux low lumen performance
proximity detection, fully calibrated to 100 mm detection
integrated infrared LED and synchronous LED driver
exempt from proximity sensor factory calibration
programmable wait timer, wait state power consumption – 90 A typical values
programmable range of 2.7 milliseconds to more than 8 seconds
I2C interface compatible with up to 400kHz (I2C fast mode)
dedicated interrupt pin
14 sleep mode power – 2.2 A typical values
15 small package 3.94 x 2.36 x 1.35 mm
