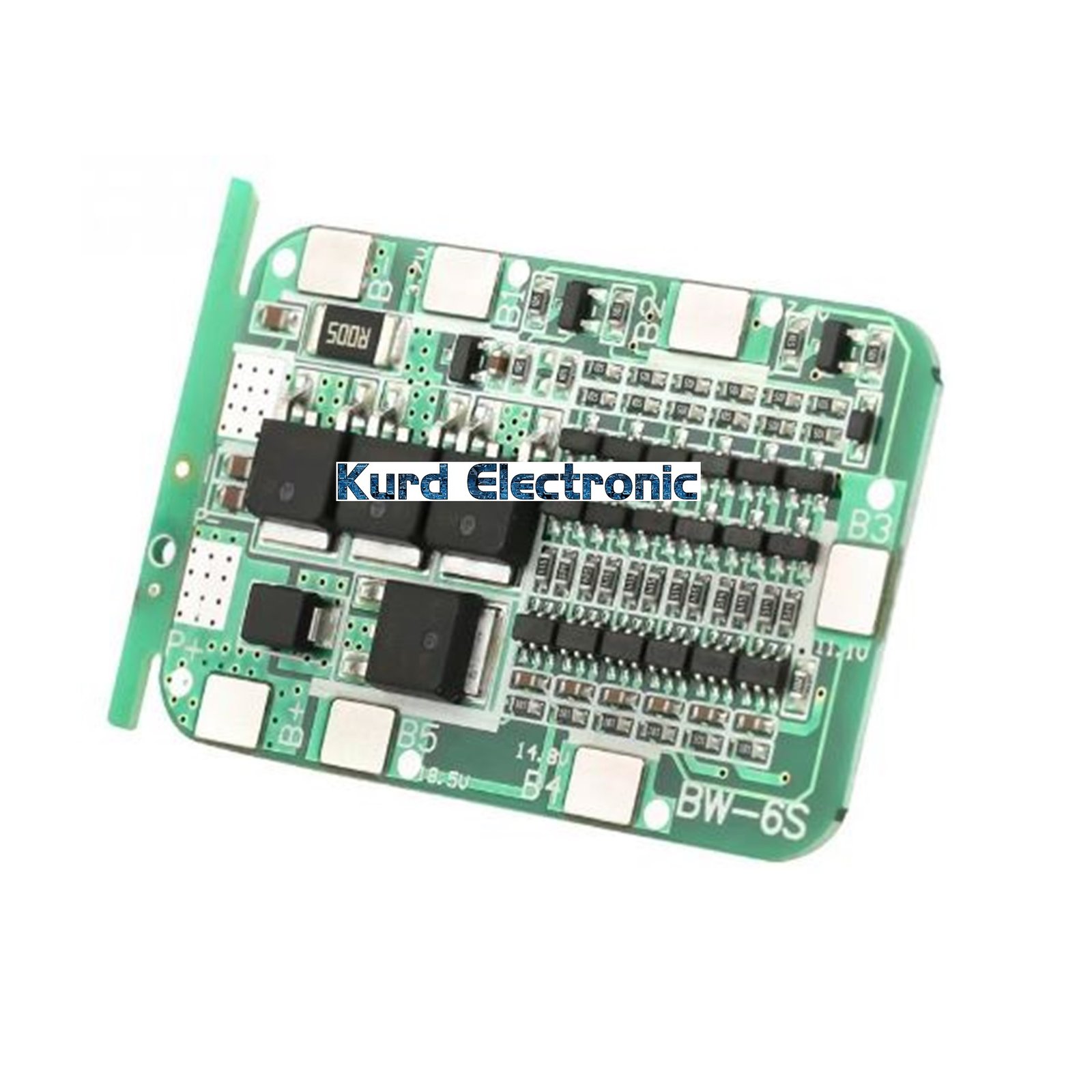

BMS 6S Protection Board 22V 24V

Max discharge current: 15A
Instantaneous discharge current: 25A
Charge voltage: 25.5V
Charging current: 15A(Max)
Overcharge detection voltage: 4.28±0.05V
Overdischarge detection voltage: 2.55±0.08V
Overcurrent detection voltage: 150mV
Overcurrent protection current: 30±3A
Working current: ≤30uA
Sleep current (when overdischarge): ≤10uA
Working temperature: -30~80℃
Size: 50*32mm/1.97*1.26in
Package weight: Appro
