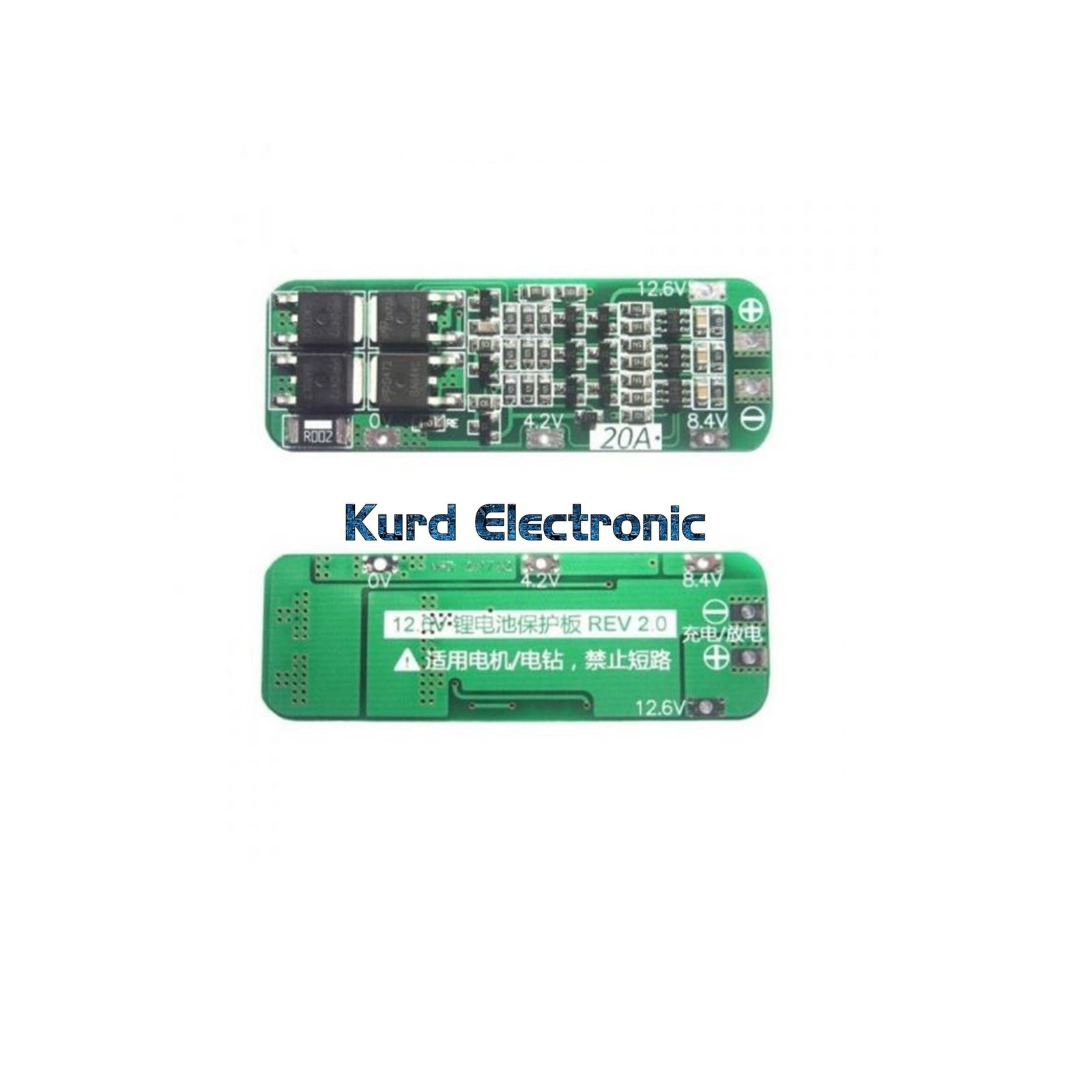

BMS 3S Series 20A Protection Board 11.1V 12V 12.6V

Charging Voltage: 12.6V-13V
Overcharge Voltage Range: 4.25V-4.35V ? 0.05V
Overpressure Voltage Range: 2.3V-3.0V ? 0.05V
Upper Limit Operating Current: 6A-8A
Upper Limit Instantaneous Current: 10A-13A
Quiescent Current: less than 30uA
Internal Resistance: less than 100m?
Effective Life: more than 30,000 hours
Operating Temperature: -40- +50 degrees
Storage Conditions: -40- +80 degrees
Size: 53 * 167* 4mm
Short Circuit Protection: protection, delay self-recovery
