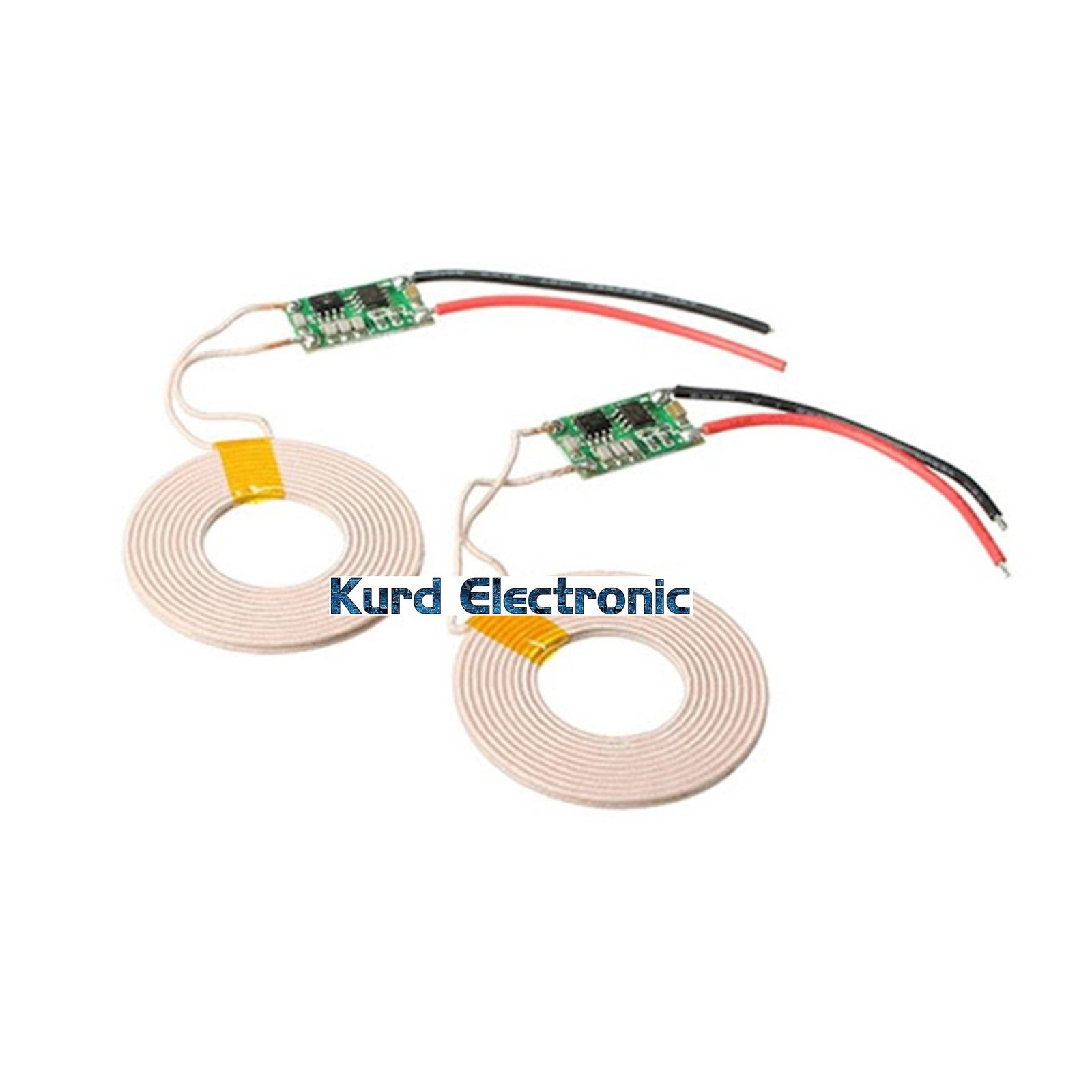

5V 2A high current single chip wireless charging wireless power supply module chip solution XKT518-01
Main parameters of the module:
Input voltage: 12V
Transmitter module size: length 18mm, width 10mm, thickness 2.5mm
Transmitting coil: outer diameter 42mm, inductance 6uH
Receiving voltage stabilizer board: length 30mm*width 15mm
Receiving coil: outer diameter 42mm, inductance 6uH
Receive maximum output current: 5V2A
When used for a long time, the load current should be less than 1.5A as much as possible
