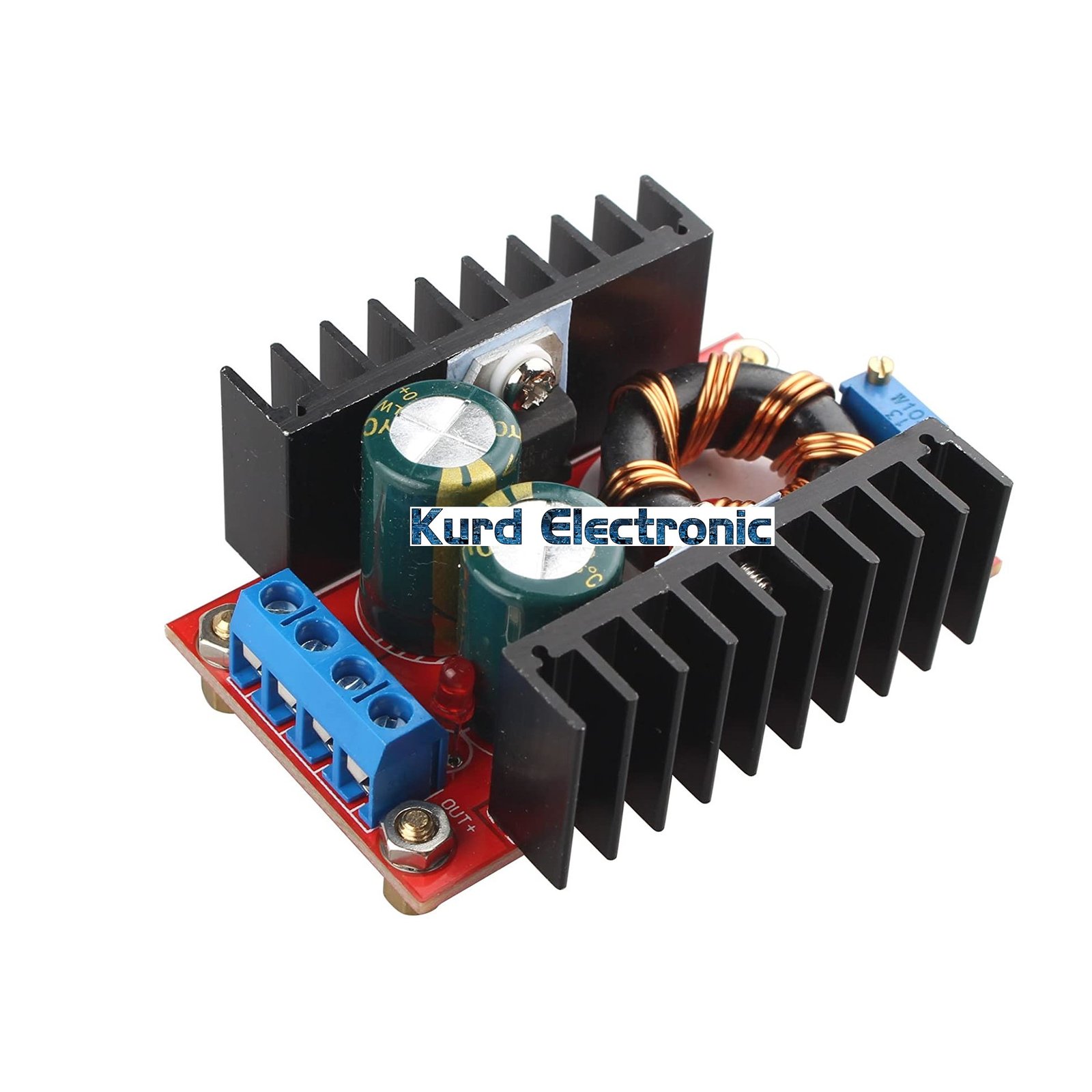

150W Boost Converter DC-DC 10- 32V to 12-35V Step Up Voltage Charger Module

100% Brand new and high quality?DC-DC Boost Converter 10-32V to 12-35V Step Up Charger Power Module 150W
?DC-DC Step Up Converter Adjustable Static Power DC Boost ?Voltage Regulator ?Converter Module 10-32V to 12-35V Step Up 150W 6A?
?Input voltage : DC 10 – 32 V?
?Output Voltage : DC 12-35 V(Adjustable)?
?Output Current : 6A(MAX)
?Input current : 10A (MAX) (more than 10A please strengthen heatsink) ?
?Output Power :?natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
?Conversion efficiency :?94% (when Input 19V 2.5A Output 16V, Reference)
?Output ripple :?2% (MAX)
?Working Temperature :?industrial (- 40 ? c to +85 ?c) ( environmental temperature, more than 40 degrees, please reduce power to use, or – enhance cooling).
?Full-Load temperature :?45 degrees
?No-load current :?25mA typical
?Voltage regulation :??? 0.5%
?Load regulation : ??? 0.5%
?Dynamic response speed : ?200uS 5%
?Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
?Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
?Size :?65*23*56.3 mm?
