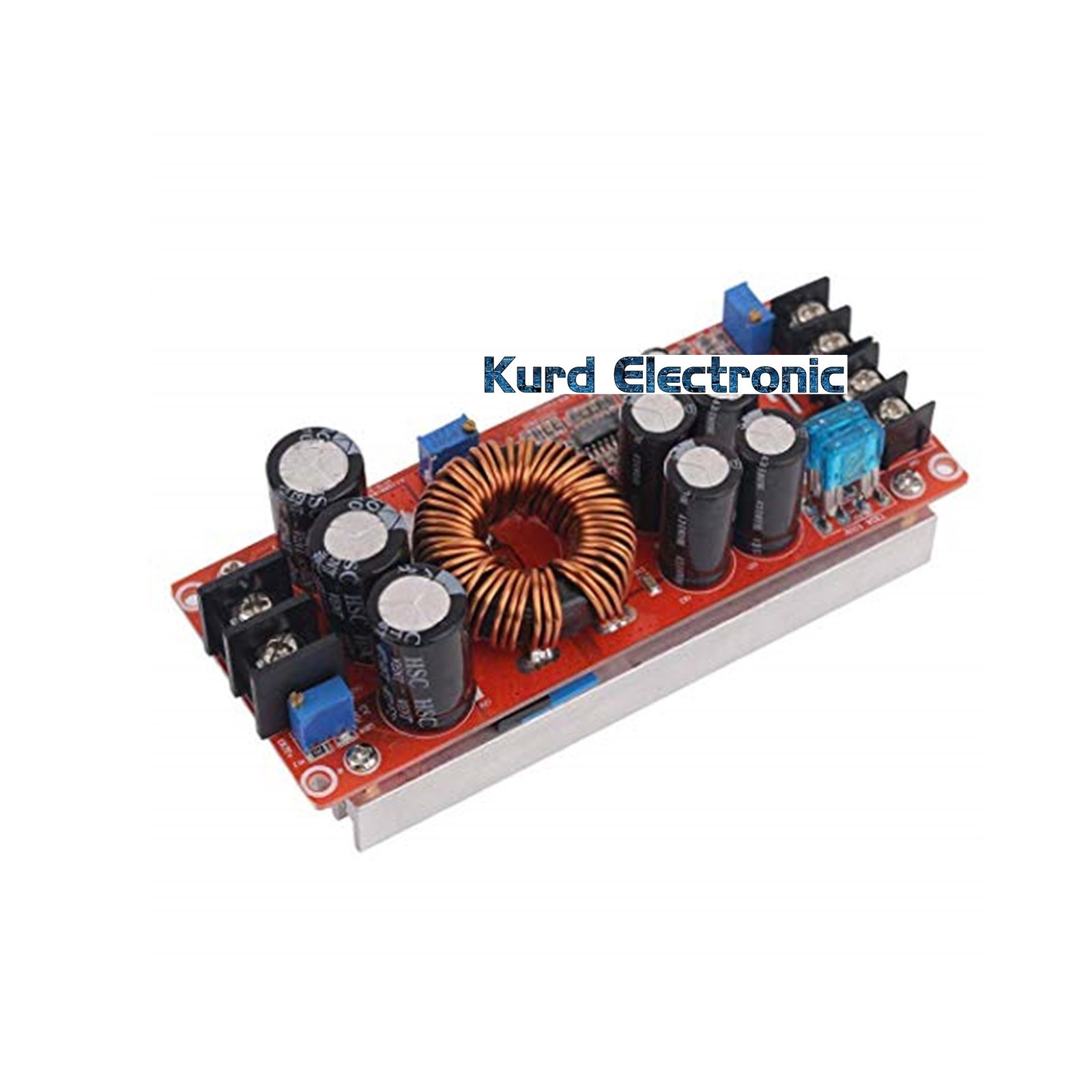

1200w DC DC Boost Step Up 8-60V to 12-83V 20A

Module name: 1200W boost constant current module
Module properties: non isolated boost module (BOOST)
Input voltage: 8-60V
Input current: 20A
Quiescent operating current: 15mA
Output voltage: 12-83V continuous adjustable
Output current: MAX 12A over 20A, please strengthen the
cooling (with input and output differential pressure, the greater
the pressure difference between the output current is small)
Constant current range: 0.3-20A
Output power: = input voltage *10A
Working temperature: -40~+85 degrees
Working frequency: 150KHz
Conversion efficiency: ?95% (efficiency and input, output voltage,
current, pressure difference)
Installation: 4pcs 3mm column
Connection mode: welding output (please use big current and pure copper wire)
Module size: 130mmx52mmx46mm(LxWxH)
